How to Install LED Strips (Plan, Cut, Mount & Power)
Transform your home office from a dull workspace into a vibrant, productive hub with the simple addition of LED strip lighting. Whether you're aiming for bright, uniform task lighting under your desk or a soft, ambient glow behind your monitor to reduce eye strain, LED strips are a versatile and efficient solution.
This comprehensive guide will walk you through every step of a home office LED strip installation, from initial planning and choosing the right gear to the final mounting and troubleshooting common issues. You don't need to be an expert—just follow these steps to achieve a professional-looking result.
Before You Start — Quick Checklist
A little prep work goes a long way. Use this checklist to ensure you have everything you need before you begin.
Measure your space: Use a tape measure to get accurate lengths for all the runs of LED strips you plan to install.
Choose your voltage (12V or 24V): The voltage of your LED strips and power supply must match. 24V is often a better choice for longer runs as it reduces the need for power injection.
Gather your tools:
Tape measure
Wire strippers
Scissors or utility knife
Isopropyl alcohol (rubbing alcohol)
Multimeter (optional, but very helpful for troubleshooting)
Solder and soldering iron (optional, but provides the most secure connections)
Snap-on connectors (a no-solder alternative)
Prepare your surface: Clean the mounting surface with isopropyl alcohol to remove dust and oils. This is crucial for ensuring the adhesive sticks properly.
Choose the Right Strip for the Job (Brightness & Style)
Not all LED strips are created equal. The type of LED chip and its density will determine the brightness and visual effect of your lighting.
Chip Density & Types
The most common LED chip types you’ll encounter are 2835, 3528, 5050, and COB (Chip on Board). Each has trade-offs in terms of brightness, energy efficiency, and light quality.
2835 & 3528: These are smaller, less bright chips. Strips with a high density of these chips (e.g., 60 or 120 LEDs per meter) can produce a smooth, continuous line of light.
5050: These are larger and brighter, often containing three diodes in one chip, making them suitable for brighter task lighting. However, they can produce a more noticeable "dotting" effect.
COB (Chip on Board): A newer technology where many tiny LED chips are mounted directly onto the circuit board and covered with a phosphor coating. This creates a completely seamless, dot-free line of light, even without a diffuser. They are an excellent choice for visible installations where you want a clean, professional finish.
For more on chip types and their implications for brightness, check out sources like Hitlights.
Plan Power & Run Length (Why Voltage Matters)
This is a critical step that many guides overlook. A common mistake is simply connecting a long run of strips to a power supply (PSU) without considering the voltage drop.
Voltage Drop: As electrical current travels down a length of LED strip, the voltage gradually decreases. This causes the LEDs at the end of the run to appear dimmer than those at the start.
Maximum Runs: While a 12V strip may be rated for a 5-meter run, you'll often see a noticeable voltage drop and dimming before that point. 24V strips can handle longer runs more efficiently with less voltage drop.
Power Injection: For long runs (typically over 5 meters), you can "inject" power at multiple points along the strip by running parallel wires from the PSU. This ensures consistent brightness from beginning to end. For example, a 10-meter run could have power injected at both the start and the 5-meter mark, or even the start, 3-meter, 6-meter, and 9-meter marks for maximum consistency.
Planning your power supply wattage is also key. Your PSU should have a wattage rating at least 15-20% higher than your total LED strip wattage to ensure it runs cool and lasts longer. For more detailed information on planning your power, review guides from experts like quinled.info.
Mounting Options (Adhesive, Channels, Clips, Renter-Friendly)
How you mount your LED strips affects both the final look and the longevity of your installation.
Peel-and-Stick Backing: Most LED strips come with a 3M adhesive backing. This is great for temporary or hidden installations on clean, smooth surfaces like the underside of a desk. However, the adhesive can fail on textured, painted, or dusty walls.

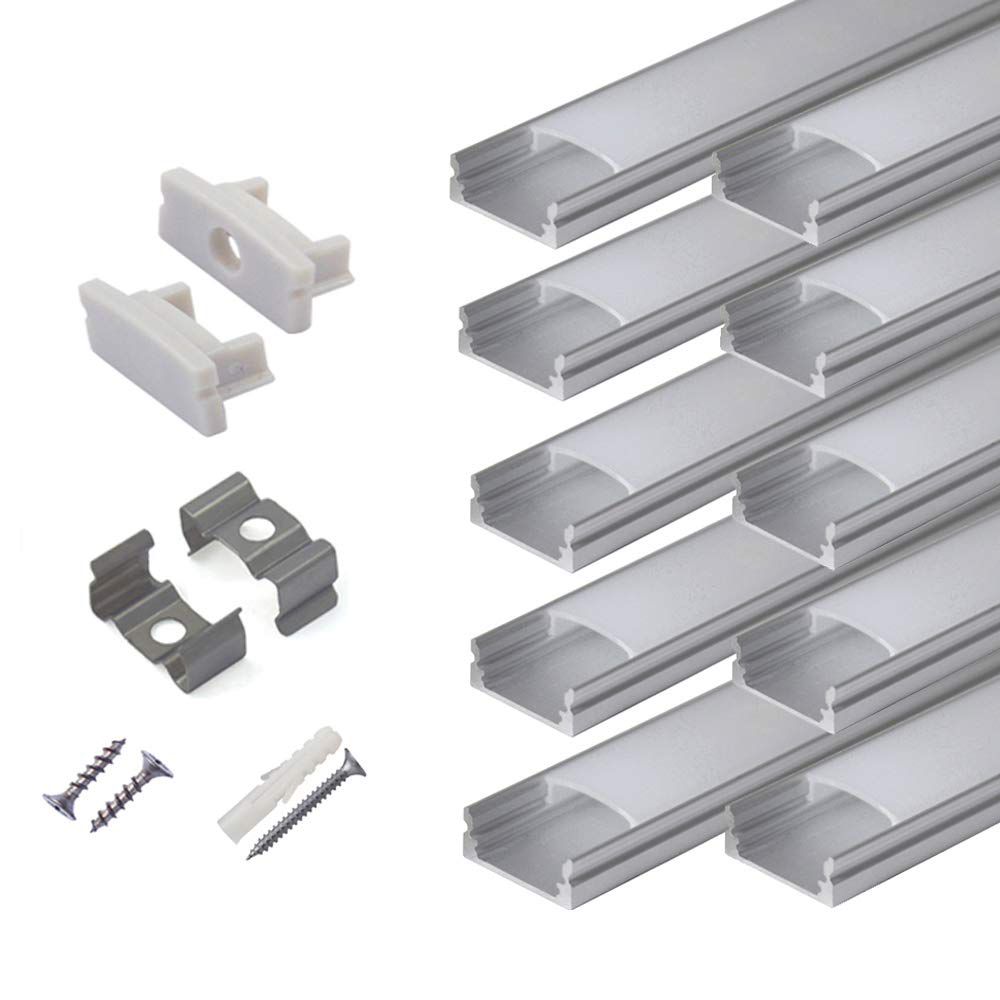

Aluminum Channels: For a truly professional and durable installation, use aluminum channels. They offer two main benefits:
Heat Dissipation: They act as a heatsink, pulling heat away from the LEDs and extending their lifespan.
Light Diffusion: With a frosted diffuser cover, channels can turn a dotty strip into a smooth, continuous line of light. This is especially useful for visible installations on bookshelves or walls. For more on the benefits of channels, check out resources like those from LEDYi Lighting.
Renter-Friendly Methods: If you can't use permanent adhesive or screws, consider these options:
Command Strips: A non-damaging, removable option. Use small squares along the strip to hold it in place.
Velcro: Offers a reusable, damage-free way to mount and reposition strips.
Mounting Clips: Some strips come with small plastic clips that can be mounted with tiny finishing nails or adhesive.
Cutting & Connecting (Exactly Where to Cut; Connectors vs. Solder)
The most common question from beginners is, "where do I cut?"
Look for the markings: LED strips have designated cut points marked with a small copper pad and often a scissor icon. Never cut in the middle of the strip! Cutting anywhere other than these points will permanently disable that segment of the strip.
Connecting Strips:

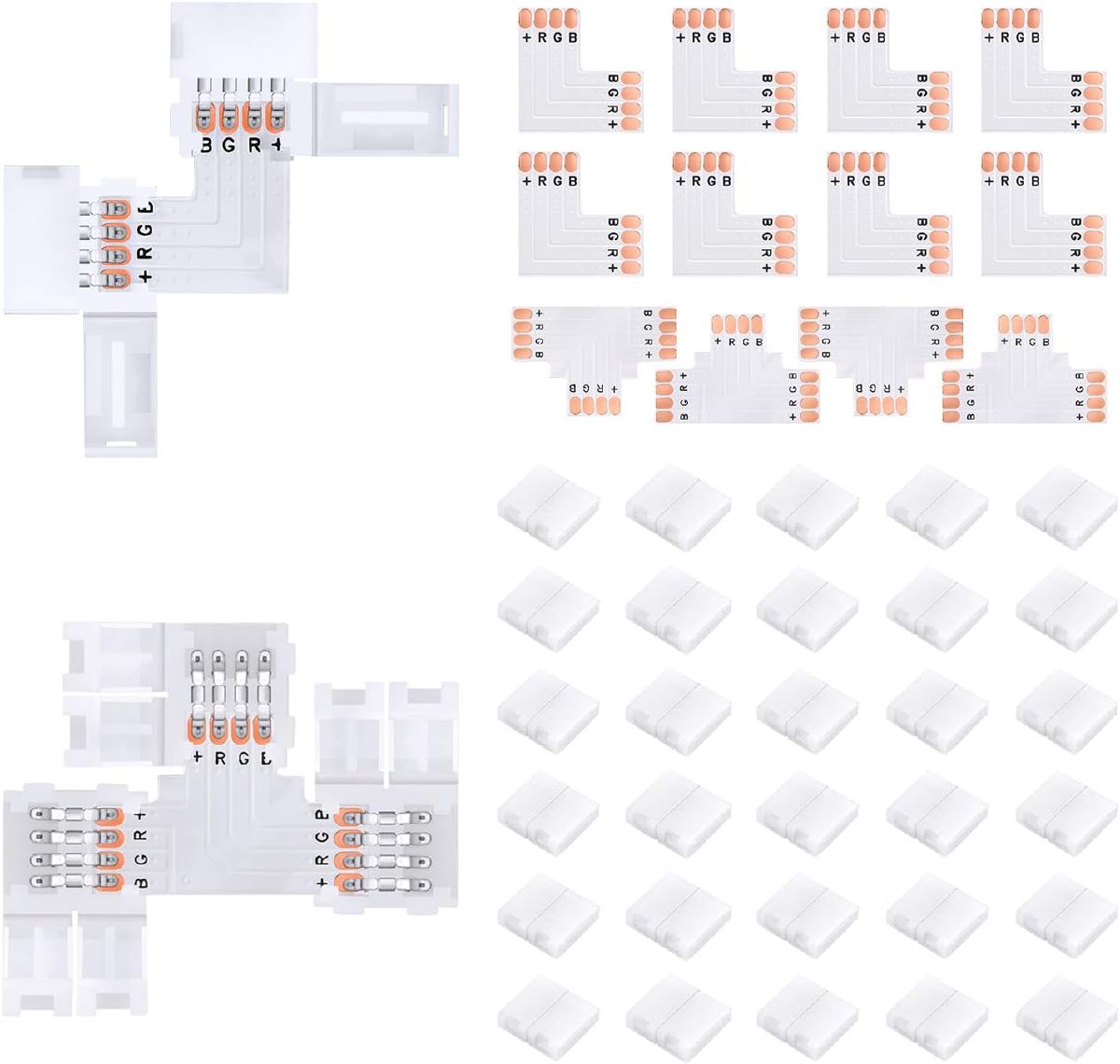

Snap-on Connectors: These are the easiest, no-solder method. Simply open the connector, align the strip's copper pads with the connector's pins, and snap it shut.
Soldering: Soldering provides the most reliable and durable connection. It's a great skill to learn if you plan on doing more complex installations.
Wiring & Controllers (Basic Wiring Diagram)
The wiring setup for a simple installation is straightforward:
Power Supply → Controller (optional) → LED Strip(s)
Power Supply (PSU): This converts your wall voltage (e.g., 120V) to the low voltage (e.g., 12V or 24V) required by the strips. Always use a PSU with the correct voltage and sufficient wattage.
Controller: If you are using RGB, RGBW, or tunable white strips, you'll need a controller to change colors, brightness, and effects. The controller connects between the PSU and the strips.
Common Mistakes: The most common wiring mistake is mixing up positive (+) and negative (-) wires, or connecting a 12V strip to a 24V power supply. This can burn out the LEDs. Always double-check your voltage and polarity.
Common Installation Mistakes & Troubleshooting
Even with careful planning, things can go wrong. Here’s how to fix them.
Adhesive Failure: If your strip won't stick, the surface is likely dirty, textured, or painted. Clean it with isopropyl alcohol. If it still fails, use a more secure method like mounting clips or aluminum channels.
Voltage Drop / Dimming at the End: This is a classic sign of insufficient power. The solution is to use a 24V strip, a shorter run, or power injection to boost the voltage at the end of the strip.
Incorrect Cut Points: If you cut your strip and a segment no longer works, it means you cut in the wrong place. The only fix is to replace that section. Always use the marked cut points.
Bends and Kinks: When wrapping strips around corners, avoid sharp bends, which can damage the delicate circuitry inside. Use specially designed corner connectors or make a gentle curve. AspectLED has excellent tips on handling and bending strips properly.
Quick Gear Guide (What to Buy)
Under-desk task lighting: Opt for a bright, high-density white LED strip (e.g., 24V COB) for uniform illumination of your workspace.
Behind-monitor bias lighting: Use a warm white or a color-changing (RGB) strip mounted on the back of your monitor. A shorter, lower-power strip is usually sufficient.
Shelf or accent lighting: This is a great place to use an aluminum channel with a frosted diffuser and a COB strip to create a high-end, seamless look.
If you want pre-tested options for each use case, see our 10 Best LED Strips.
Safety & Maintenance
Match Voltage & Wattage: Always ensure your power supply voltage matches your strips, and that its wattage rating exceeds your total strip wattage.
Heat Dissipation: For long or high-power runs, use aluminum channels to prevent overheating and prolong the life of your LEDs.
Test on Surfaces: If you have painted or delicate walls, test the adhesive in an inconspicuous spot before committing to the full installation.
Keep Dry: Be mindful of IP ratings; if a strip is not rated for moisture (e.g., IP65 or higher), keep it away from spills or humid areas.
FAQs
Q: Can I stick LED strips to a painted wall? A: You can, but the adhesive may not hold well, especially on textured or matte paint. The strip may eventually fall, and the adhesive can damage the paint upon removal. For a more secure and renter-friendly option, use removable Command strips or aluminum channels mounted with temporary clips.
Q: Why are the LEDs at the end of my strip dimmer? A: This is a common issue caused by voltage drop. As the current travels down the strip, the voltage decreases, causing the LEDs at the far end to be less bright. To fix this, use power injection to run parallel wires from the power supply to the end or middle of the strip.
Q: Where exactly do I cut LED strips? A: LED strips have specific cut points marked by a small copper pad and often a scissor icon. You must only cut at these designated points. Cutting anywhere else will damage the circuit and render that segment unusable.
Q: Is it better to use solder or connectors? A: Solder provides a more permanent, reliable, and secure electrical connection. However, connectors are a quick, easy, and no-solder alternative that works well for most home installations.
Conclusion
Installing LED strips in your home office is an easy and impactful project that can completely change your workspace's look and feel. By planning your power, choosing the right mounting method, and avoiding common mistakes, you can achieve a professional and long-lasting result.
